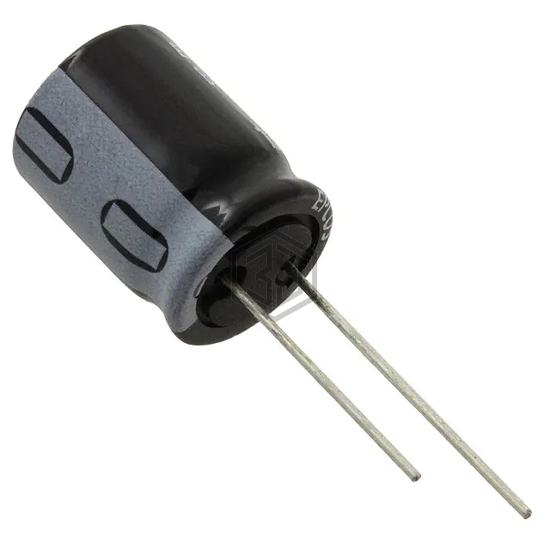

CAP ALUM 1500UF 20% 35V RADIAL
B41821F7158M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1500UF 20% 35V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 35 V, package / case Radial, Can.
In Stock: 8,143
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | 150mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.4 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| RZW152M1VBK-1335S | Surge | CAP ALUM 35V POLAR | 93% | View |
| MAL213826152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 25V AXIAL | 76% | View |
| 80MXG1500MEFCSN22X30 | Rubycon | CAP ALUM 1500UF 20% 80V SNAP | 67% | View |
| 50ZLJ1500M12.5X40 | Rubycon | CAP ALUM 1500UF 20% 50V RADIAL | 64% | View |
| 380LQ152M200K042 | Cornell Dubilier Electronics (CDE) | CAP ALUM 1500UF 20% 200V SNAP | 56% | View |
| 158RZM016M1320 | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1500UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for B41821F7158M000 and get a quote within 24 hours.
