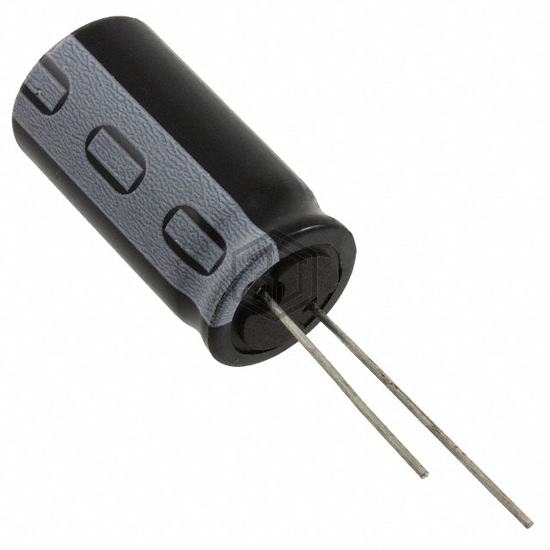

CAP ALUM 6800UF 20% 16V RADIAL
B41821F4688M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 6800UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 7,183
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.3 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SEK682M025ST | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 25V RADIAL | 71% | View |
| ELXZ6R3ETS682MM20S | United Chemi-Con | CAP ALUM 6800UF 20% 6.3V RADIAL | 69% | View |
| LKSA2682MESZ | Nichicon | CAP ALUM 6800UF 20% 42V SNAP | 64% | View |
| 10MXG6800MEFCSN20X25 | Rubycon | CAP ALUM 6800UF 20% 10V SNAP | 62% | View |
| 63MXC6800MEFC30X40 | Rubycon | CAP ALUM 6800UF 20% 63V SNAP | 56% | View |
| LKS1J682MESB | Nichicon | CAP ALUM 6800UF 20% 63V SNAP | 56% | View |
Submit your RFQ for B41821F4688M000 and get a quote within 24 hours.
