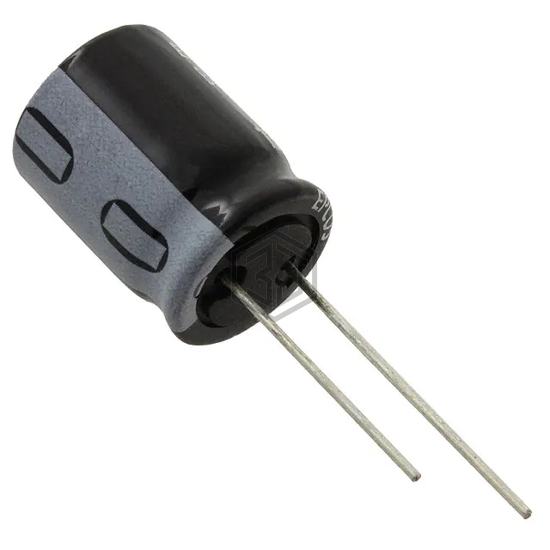

CAP ALUM 1500UF 20% 16V RADIAL
B41821F4158M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1500UF 20% 16V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can.
In Stock: 4,844
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 220mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 950 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.866" (22.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEU-FR1C152 | Panasonic Electronic Components | CAP ALUM 1500UF 20% 16V RADIAL | 80% | View |
| EEU-FS0J152LB | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V RADIAL | 70% | View |
| EEU-FS0J152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V RADIAL | 70% | View |
| EKZH6R3ELL152MH20D | United Chemi-Con | CAP ALUM 1500UF 20% 6.3V RADIAL | 68% | View |
| MAL202127152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 40V AXIAL | 66% | View |
| EEU-FR0J152L | Panasonic Electronic Components | CAP ALUM 1500UF 20% 6.3V RADIAL | 63% | View |
Submit your RFQ for B41821F4158M000 and get a quote within 24 hours.
