CAP ALUM 220UF 20% 63V RADIAL

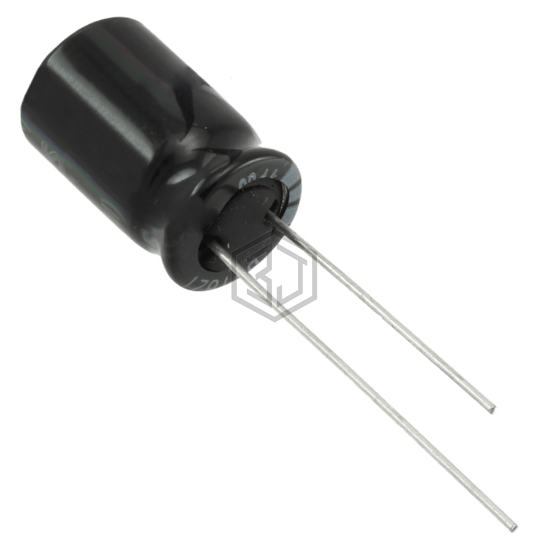

B41821A8227M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 220UF 20% 63V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can.
In Stock: 6,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 900mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 490 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.669" (17.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EGXL500EC5221MJ20S | United Chemi-Con | CAP ALUM 220UF 20% 50V RADIAL | 90% | View |
| MAL214838221E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 220UF 20% 63V RADIAL | 89% | View |
| 227TMA050M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 220UF 20% 50V AXIAL | 73% | View |
| 672D227H040EK5J | Vishay Sprague | CAP ALUM 220UF 40V RADIAL | 71% | View |
| 35YXH220MEFCT78X16 | Rubycon | CAP ALUM 220UF 20% 35V RADIAL | 71% | View |
| ESMQ201ELL221MLP1S | United Chemi-Con | CAP ALUM 220UF 20% 200V RADIAL | 60% | View |
Submit your RFQ for B41821A8227M000 and get a quote within 24 hours.
