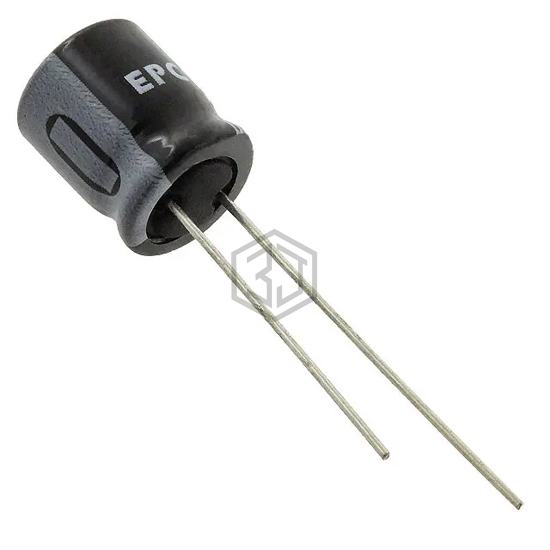

CAP ALUM 270UF 20% 25V RADIAL
B41821A5277M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 270UF 20% 25V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 5,996
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 350 mA @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPA1E271MPD | Nichicon | CAP ALUM 270UF 20% 25V RADIAL | 95% | View |
| UPA1V271MPD1TA | Nichicon | CAP ALUM 270UF 20% 35V RADIAL | 71% | View |
| EKZE350EC3271MH20D | United Chemi-Con | CAP ALUM 270UF 20% 35V RADIAL | 67% | View |
| 35ZLH270MEFC8X16 | Rubycon | CAP ALUM 270UF 20% 35V RADIAL | 67% | View |
| ELXY160ELL271MH12D | United Chemi-Con | CAP ALUM 270UF 20% 16V RADIAL | 67% | View |
| MAL213638271E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 270UF 20% 63V RADIAL | 66% | View |
Submit your RFQ for B41821A5277M000 and get a quote within 24 hours.
