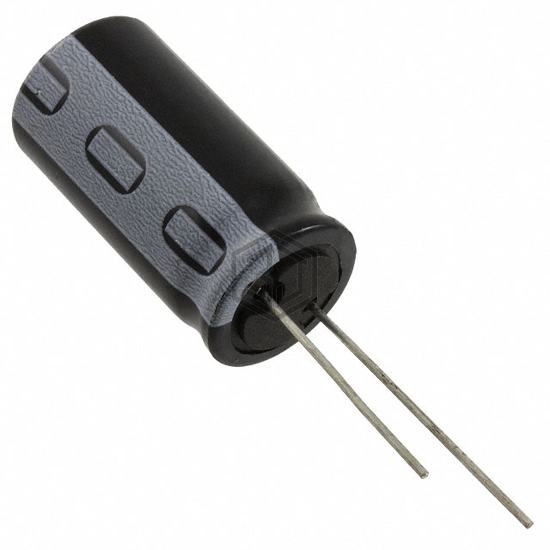

CAP ALUM 6800UF 20% 10V RADIAL
B41821A3688M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 6800UF 20% 10V RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 8,466
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | 80mOhm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.25 A @ 120 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | - |
| Lead Spacing | 0.295" (7.50mm) |
| Size / Dimension | 0.630" Dia (16.00mm) |
| Height - Seated (Max) | 1.319" (33.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MALREKC00JU468C00F | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6.8MF 20% 10V RADIAL | 99% | View |
| 10YXS6800MEFC16X25 | Rubycon | CAP ALUM 6800UF 20% 10V RADIAL | 98% | View |
| UHE0J682MHT3 | Nichicon | CAP ALUM 6800UF 20% 6.3V RADIAL | 80% | View |
| EKYA160ELL682MLN3S | United Chemi-Con | CAP ALUM 6800UF 20% 16V RADIAL | 72% | View |
| LGU1V682MELA | Nichicon | CAP ALUM 6800UF 20% 35V SNAP | 71% | View |
| SLPX682M050A9P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 50V SNAP | 53% | View |
Submit your RFQ for B41821A3688M000 and get a quote within 24 hours.
