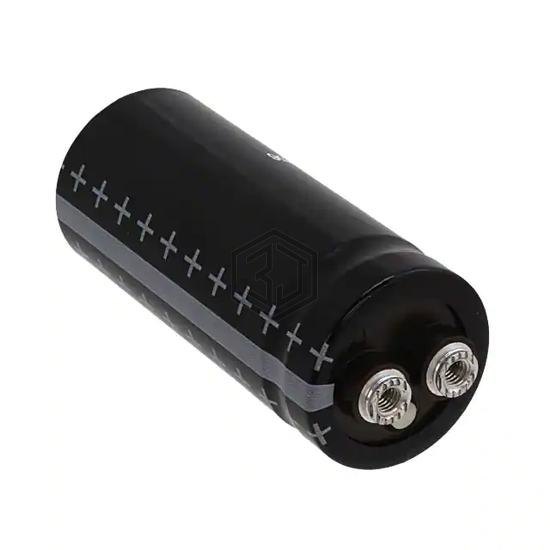

CAP ALUM 2200UF 20% 100V SCREW
B41580A9228M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2200UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,151
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 70mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 77 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41580A9228M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41554E9228Q000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 100V SCREW | 82% | View |
| MAL210412222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 200V SCREW | 68% | View |
| B43740A9228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 400V SCREW | 58% | View |
| E32D201HPN222TDB7U | United Chemi-Con | CAP ALUM 2200UF 200V SCREW | 56% | View |
| LNU2H222MSEHBN | Nichicon | CAP ALUM 2200UF 20% 500V SCREW | 52% | View |
| MAL210435222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 350V SCREW | 51% | View |
Submit your RFQ for B41580A9228M000 and get a quote within 24 hours.
