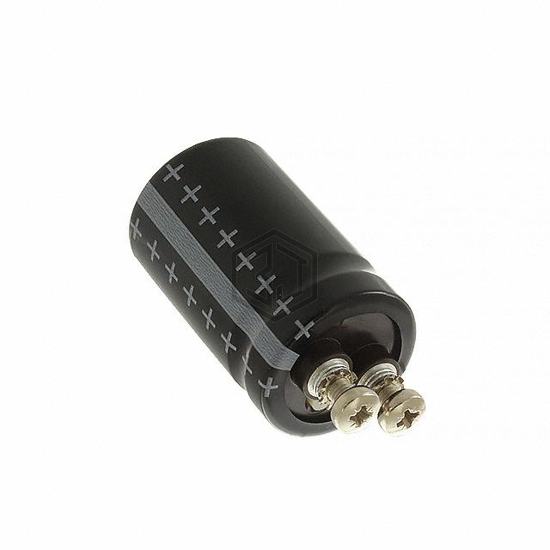

CAP ALUM 1500UF 20% 100V SCREW
B41580A9158M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1500UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,329
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 104mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 3.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 90 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41580A9158M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41560A9158M000 | EPCOS - TDK Electronics | CAP ALUM 1500UF 20% 100V SCREW | 100% | View |
| ALS80H152DE250 | KEMET | CAP ALUM 1500UF 20% 250V SCREW | 68% | View |
| ALS81H152DE250 | KEMET | CAP ALUM 1500UF 20% 250V SCREW | 68% | View |
| PEH169RJ4150QU2 | KEMET | CAP ALUM SCREW TERM 105C | 66% | View |
| E32D401HPN152MC92U | United Chemi-Con | CAP ALUM 1500UF 20% 400V SCREW | 57% | View |
| MAL210446152E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1500UF 20% 400V SCREW | 53% | View |
Submit your RFQ for B41580A9158M000 and get a quote within 24 hours.
