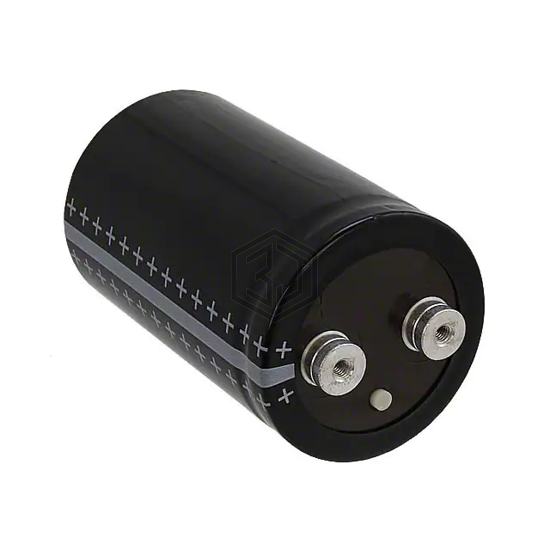

CAP ALUM 68000UF 20% 63V SCREW
B41580A8689M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 68000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,770
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 7.8 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1J683MSE | Nichicon | CAP ALUM 68000UF 20% 63V SCREW | 89% | View |
| ALS80P683NW100 | KEMET | CAP ALUM 68000UF 20% 100V SCREW | 73% | View |
| ALS80A683NW100 | KEMET | CAP ALUM 68000UF 20% 100V SCREW | 73% | View |
| E32D800HPN683MED0U | United Chemi-Con | CAP ALUM 68000UF 20% 80V SCREW | 72% | View |
| E32D160HPN683MC54U | United Chemi-Con | CAP ALUM 68000UF 20% 16V SCREW | 58% | View |
| LNT1E683MSE | Nichicon | CAP ALUM 68000UF 20% 25V SCREW | 51% | View |
Submit your RFQ for B41580A8689M000 and get a quote within 24 hours.
