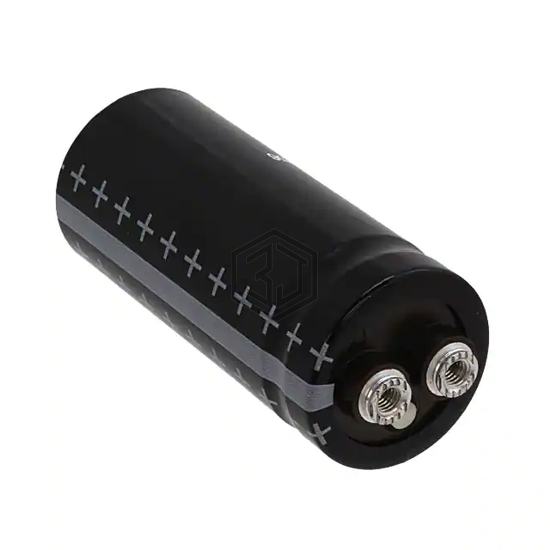

CAP ALUM 10000UF 20% 63V SCREW
B41580A8109M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,140
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 27mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.1 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 16 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41580A8109M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1K103MSEB | Nichicon | CAP ALUM 10000UF 20% 80V SCREW | 77% | View |
| B41560A9109M000 | EPCOS - TDK Electronics | CAP ALUM 10000UF 20% 100V SCREW | 72% | View |
| E32D101HPS103MC79U | United Chemi-Con | CAP ALUM 10000UF 20% 100V SCREW | 67% | View |
| LNT1V103MSE | Nichicon | CAP ALUM 10000UF 20% 35V SCREW | 58% | View |
| PEH169GA5100QU2 | KEMET | CAP ALUM 10000UF 16V SCREW | 56% | View |
| MLS103M020EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 20% 20V FLATPCK | 55% | View |
