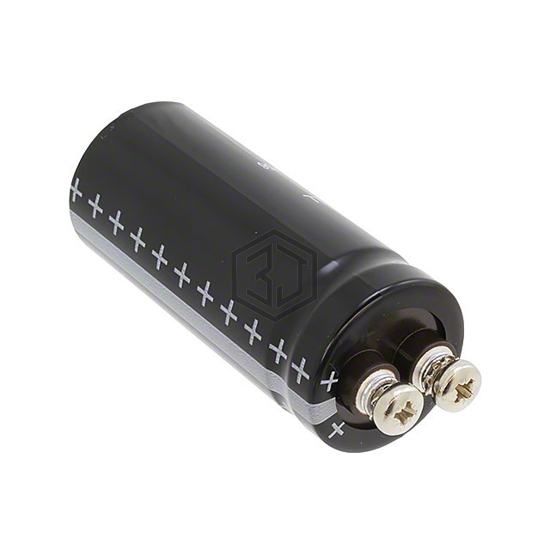

CAP ALUM 15000UF 20% 40V SCREW
B41580A7159M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 15000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,324
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 23mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 16 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41580A7159M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D450HPN153TAA5U | Chemi-Con | CAP ALUM 15MF 45V SCREW CHAS MT | 92% | View |
| LNT1V153MSE | Nichicon | CAP ALUM 15000UF 20% 35V SCREW | 82% | View |
| ALS80H153DE063 | KEMET | CAP ALUM 15000UF 20% 63V SCREW | 70% | View |
| LNT1K153MSEN | Nichicon | CAP ALUM 15000UF 20% 80V SCREW | 67% | View |
| 100LSW15000MEFC51X118 | Rubycon | CAP ALUM 15000UF 20% 100V SCREW | 67% | View |
| B41560A9159M000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 100V SCREW | 50% | View |
Submit your RFQ for B41580A7159M000 and get a quote within 24 hours.
