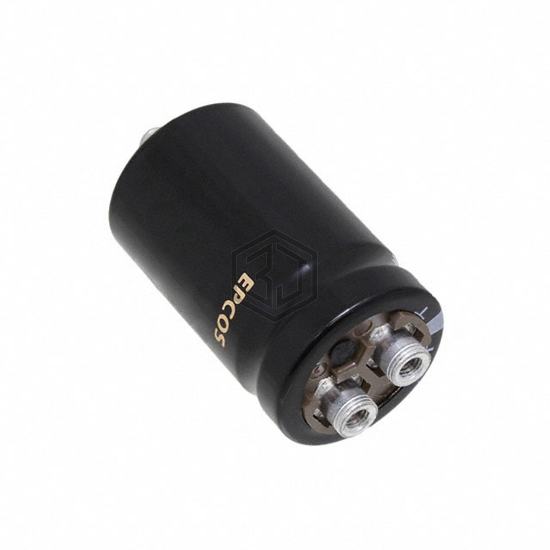

CAP ALUM 4700UF 100V SCREW
B41570E9478Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 100V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 100 V, package / case Radial, Can - Screw Terminals, size / dimension 2.032" Dia (51.60mm).
In Stock: 3,250
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 29mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 20 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E9478Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D151HPN472TEE3U | United Chemi-Con | CAP ALUM 4700UF 150V SCREW | 74% | View |
| LNT2A472MSEN | Nichicon | CAP ALUM 4700UF 20% 100V SCREW | 69% | View |
| ERHB5H1LGC472MFD0U | United Chemi-Con | CAP ALUM 4700UF 20% 575V SCREW | 68% | View |
| E36D451HPN472TED0U | United Chemi-Con | CAP ALUM 4700UF 450V SCREW | 65% | View |
| LNR2D472MSEB | Nichicon | CAP ALUM 4700UF 20% 200V SCREW | 56% | View |
| B43723B9478M003 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 400V SCREW | 56% | View |
