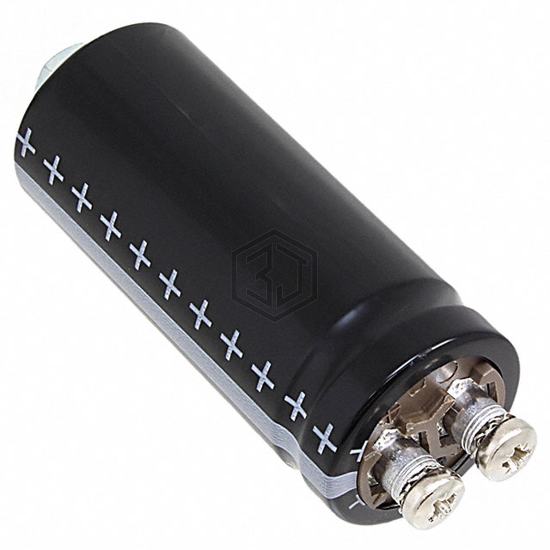

CAP ALUM 4700UF 63V SCREW
B41570E8478Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 63V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 63 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 6,631
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 31mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 20 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E8478Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B43564B4478M7 | EPCOS - TDK Electronics | CAP ALUM 4700UF 20% 350V SCREW | 59% | View |
| E36D451HLN472QEE3U | United Chemi-Con | CAP ALUM 4700UF 450V SCREW | 56% | View |
| 450LSU4700M77X143 | Rubycon | CAP ALUM 4700UF 20% 450V SCREW | 56% | View |
| E36D451CPN472MEB7U | United Chemi-Con | CAP ALUM 4700UF 20% 450V SCREW | 56% | View |
| 36DY472F040AN2A | Vishay Sprague | CAP ALUM 4700UF 40V SCREW | 55% | View |
| LNY2W472MSEGBN | Nichicon | CAP ALUM 4700UF 20% 450V SCREW | 53% | View |
Submit your RFQ for B41570E8478Q000 and get a quote within 24 hours.
