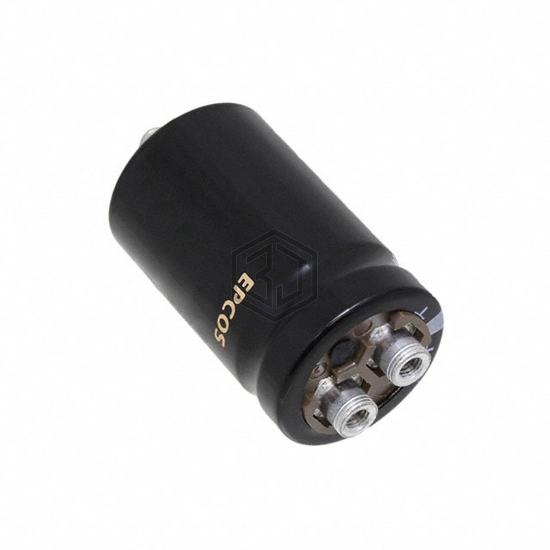

CAP ALUM 2200UF 63V SCREW
B41570E8228Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2200UF 63V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 63 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 4,258
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2200 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 60mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 4.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 30 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E8228Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100LSW2200M36X50 | Rubycon | CAP ALUM 2200UF 20% 100V SCREW | 65% | View |
| LNX2W222MSEHBN | Nichicon | CAP ALUM 2200UF 20% 450V SCREW | 58% | View |
| B43742A4228M000 | EPCOS - TDK Electronics | CAP ALUM 2200UF 20% 350V SCREW | 56% | View |
| 36DX222F350CC2A | Vishay Sprague | CAP ALUM 2200UF 350V SCREW | 56% | View |
| E36D401CJN222MC92U | United Chemi-Con | CAP ALUM 2200UF 20% 400V SCREW | 56% | View |
| LNX2H222MSEGBB | Nichicon | CAP ALUM 2200UF 20% 350V SCREW | 55% | View |
