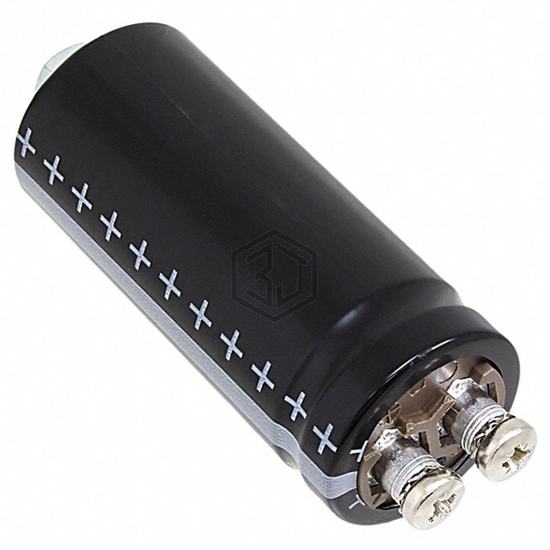

CAP ALUM 10000UF 40V SCREW
B41570E7109Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 40V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 40 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 5,836
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 27mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 14 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E7109Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 36DY103F040AM2B | Vishay Sprague | CAP ALUM 10000UF 40V SCREW | 90% | View |
| MAL210168103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 20% 63V SCREW | 83% | View |
| ALS81H103QM350 | KEMET | CAP ALUM 10000UF 20% 350V SCREW | 59% | View |
| ALS81U103NT450 | KEMET | CAP ALUM 10000UF 20% 450V SCREW | 58% | View |
| PEH169GA5100QU2 | KEMET | CAP ALUM 10000UF 16V SCREW | 56% | View |
| E36D251LPN103TEE3U | United Chemi-Con | CAP ALUM 10000UF 250V SCREW | 56% | View |
