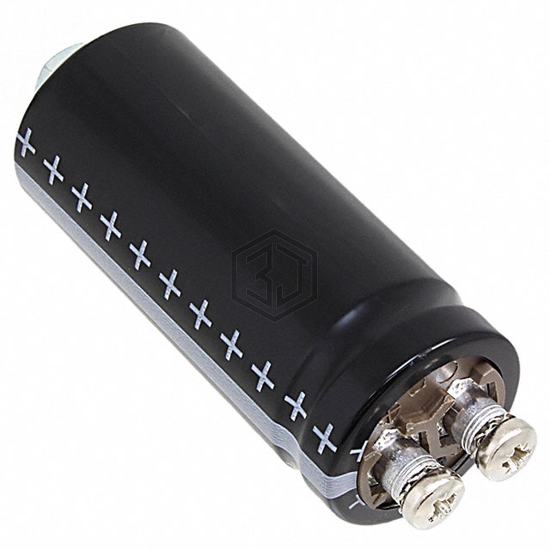

CAP ALUM 22000UF 16V SCREW
B41570E4229Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22000UF 16V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 16 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 1,093
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 18 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570E4229Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41550E5229Q000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 25V SCREW | 79% | View |
| B41580A5229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 25V SCREW | 74% | View |
| B41560A7229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 40V SCREW | 71% | View |
| E32D350HPN223MC48M | United Chemi-Con | CAP ALUM 22000UF 20% 35V SCREW | 71% | View |
| LNR1J223MSEN | Nichicon | CAP ALUM 22000UF 20% 63V SCREW | 60% | View |
| LNT2E223MSEN | Nichicon | CAP ALUM 22000UF 20% 250V SCREW | 57% | View |
Submit your RFQ for B41570E4229Q000 and get a quote within 24 hours.
