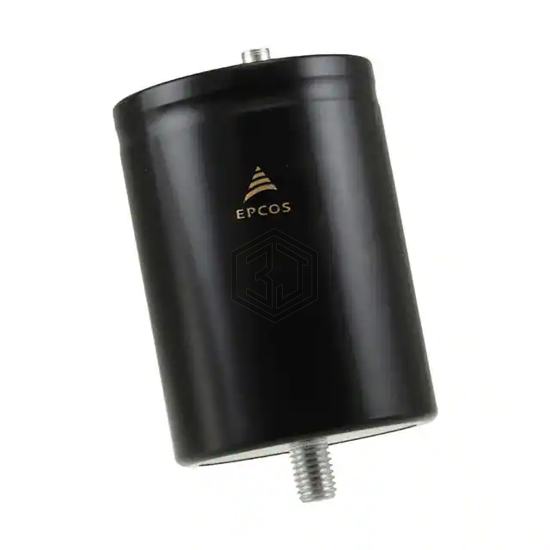

CAP ALUM 22000UF 100V SCREW
B41570A9229Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22000UF 100V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 100 V, package / case Radial, Can - Screw Terminals, size / dimension 3.028" Dia (76.90mm).
In Stock: 3,172
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 11mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 9 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570A9229Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E32D750HPN223TEE3U | United Chemi-Con | CAP ALUM 22000UF 75V SCREW | 82% | View |
| DCMC223T160DJ2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 22000UF 160V SCREW | 80% | View |
| LNT2A223MSEN | Nichicon | CAP ALUM 22000UF 20% 100V SCREW | 79% | View |
| LNR2D223MSEN | Nichicon | CAP ALUM 22000UF 20% 200V SCREW | 66% | View |
| B41560A8229M000 | EPCOS - TDK Electronics | CAP ALUM 22000UF 20% 63V SCREW | 65% | View |
| E36D500LPN223TAB7U | United Chemi-Con | CAP ALUM 22000UF 50V SCREW | 56% | View |
Submit your RFQ for B41570A9229Q000 and get a quote within 24 hours.
