CAP ALUM 6800UF 40V SCREW

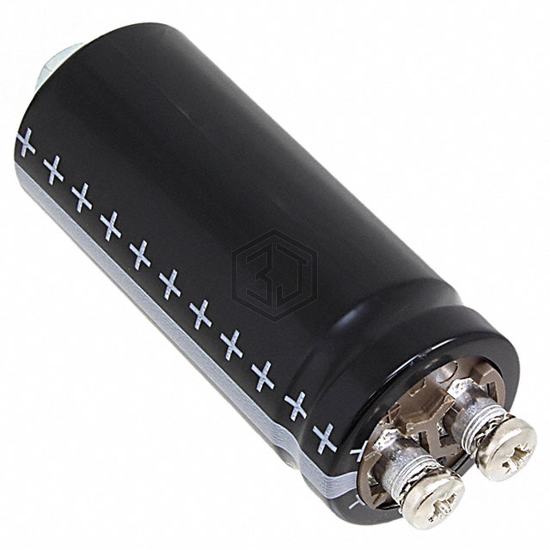

B41570A7688Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 6800UF 40V SCREW. Key specifications: mounting type Chassis Mount, voltage - rated 40 V, package / case Radial, Can - Screw Terminals, size / dimension 1.406" Dia (35.70mm).
In Stock: 2,717
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 28mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | - |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41570A7688Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| PEH200KA4680MU2 | KEMET | CAP ALUM 6800UF 20% 40V SCREW | 95% | View |
| MLS682M020EK0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 63% | View |
| ALS71A682DE100 | KEMET | CAP ALUM 6800UF 20% 100V SCREW | 58% | View |
| B43740A4688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 350V SCREW | 58% | View |
| LNT2A682MSE | Nichicon | CAP ALUM 6800UF 20% 100V SCREW | 56% | View |
| MAL210246682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 400V SCREW | 54% | View |
