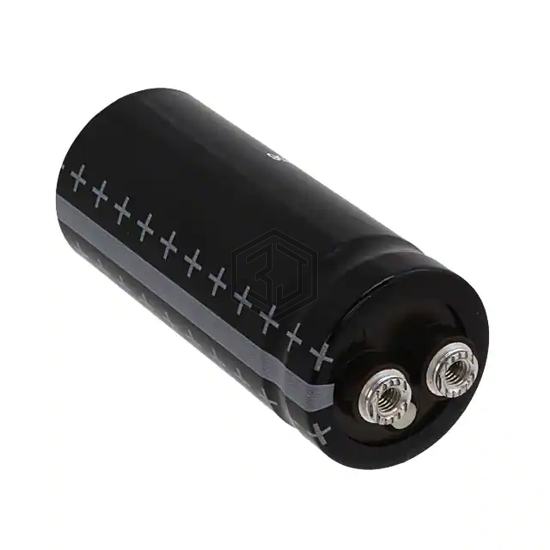

CAP ALUM 3300UF 20% 100V SCREW
B41560A9338M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 3300UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,177
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 3300 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 48mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 53 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41560A9338M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41554E9338Q000 | EPCOS - TDK Electronics | CAP ALUM 3300UF 100V SCREW | 86% | View |
| E32D161CDS332MCA5M | United Chemi-Con | CAP ALUM 3300UF 20% 160V SCREW | 70% | View |
| 550C322T500FC0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 3200UF 500V SCREW | 53% | View |
| 550322T450DF2BP | Cornell Dubilier Electronics (CDE) | CAP ALUM 3200UF 450V SCREW | 53% | View |
| ALS81H332MF450 | KEMET | CAP ALUM 3300UF 20% 450V SCREW | 51% | View |
| LNU2H332MSEHBN | Nichicon | CAP ALUM 3300UF 20% 500V SCREW | 50% | View |
Submit your RFQ for B41560A9338M000 and get a quote within 24 hours.
