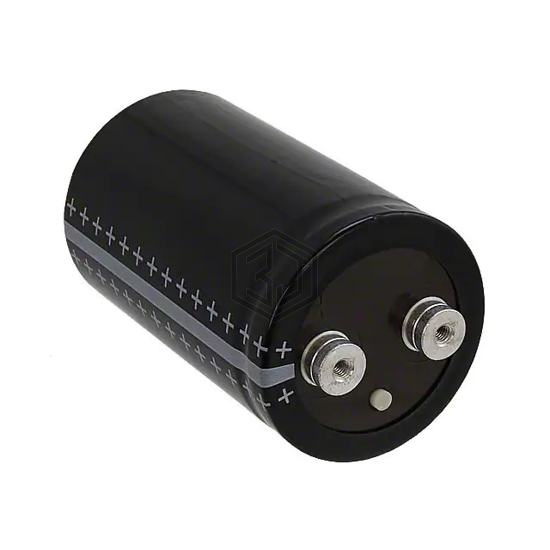

CAP ALUM 220000UF 20% 25V SCREW
B41560A5220M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 220000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,201
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 220000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 5.3mOhm @ 100Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5.6 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41560A5220M003 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 25V SCREW | 100% | View |
| LNT1E224MSEN | Nichicon | CAP ALUM 220000UF 20% 25V SCREW | 95% | View |
| LNT1V224MSEN | Nichicon | CAP ALUM 220000UF 20% 35V SCREW | 82% | View |
| B41560A7220M000 | EPCOS - TDK Electronics | CAP ALUM 220000UF 20% 40V SCREW | 79% | View |
| LNT1C224MSE | Nichicon | CAP ALUM 220000UF 20% 16V SCREW | 70% | View |
| ALS81C224QH040 | KEMET | CAP ALUM 220000UF 20% 40V SCREW | 68% | View |
