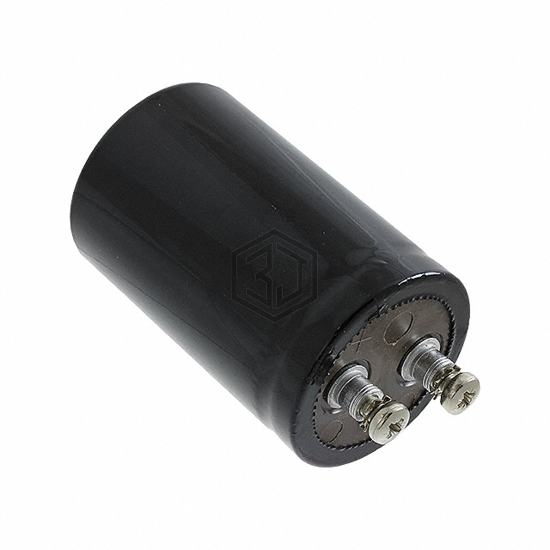

CAP ALUM 22000UF 40V SCREW
B41554E7229Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22000UF 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 125°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,555
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 2500 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 12 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41554E7229Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 125233U6R3AK1B | Cornell Dubilier Electronics (CDE) | CAP ALUM 23000UF 6.3V SCREW | 65% | View |
| MLS213M010EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 21000UF 20% 10V FLATPCK | 58% | View |
| MLS213M010EA0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 21000UF 20% 10V FLATPCK | 58% | View |
| HVMLS213M010EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 21000UF 20% 10V FLATPCK | 52% | View |
| HVMLS213M010EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 21000UF 20% 10V FLATPCK | 52% | View |
| HVMLS213M010EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 21000UF 20% 10V FLATPCK | 52% | View |
Submit your RFQ for B41554E7229Q000 and get a quote within 24 hours.
