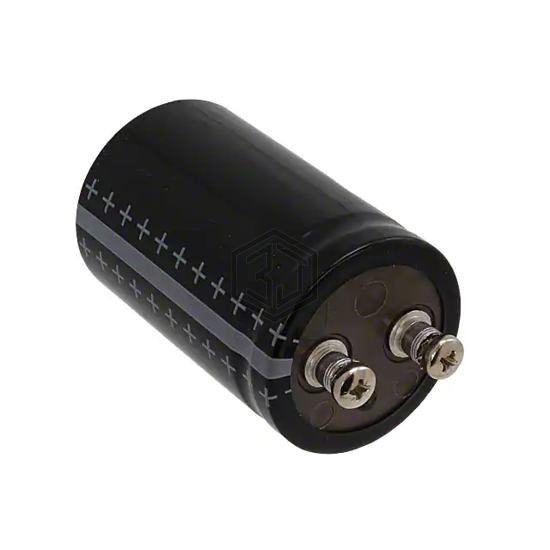

CAP ALUM 15000UF 25V SCREW
B41550E5159Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 15000UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,781
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 24mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 9.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550E5159Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41554E5159Q000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 25V SCREW | 91% | View |
| 101153U030AF2A | Cornell Dubilier Knowles | CAP ALUM 30V POLAR | 88% | View |
| B41550E7159Q000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 40V SCREW | 78% | View |
| B41550E4159Q000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 16V SCREW | 77% | View |
| B41554E4159Q000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 16V SCREW | 69% | View |
| B41554E8159Q000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 63V SCREW | 65% | View |
Submit your RFQ for B41550E5159Q000 and get a quote within 24 hours.
