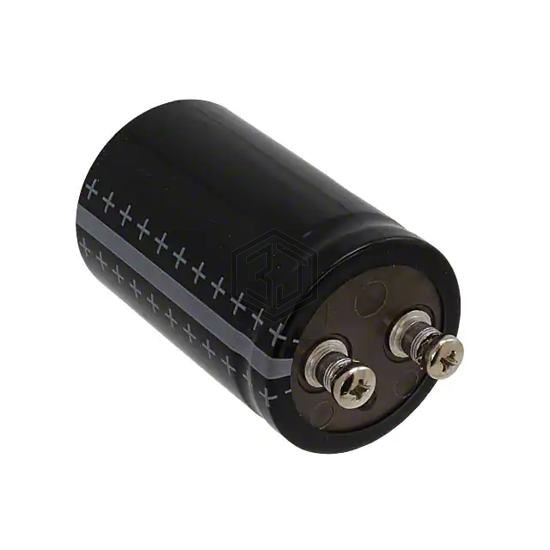

CAP ALUM 100000UF 16V SCREW
B41550E4100Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 100000UF 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 3,872
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 19 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 9 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550E4100Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41554E4100Q000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 16V SCREW | 92% | View |
| B41550E5100Q000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 25V SCREW | 80% | View |
| B41550E4150Q000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 16V SCREW | 77% | View |
| B41554E5100Q000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 25V SCREW | 77% | View |
| B41554E4150Q000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 16V SCREW | 76% | View |
| B41550E4689Q000 | EPCOS - TDK Electronics | CAP ALUM 68000UF 16V SCREW | 75% | View |
