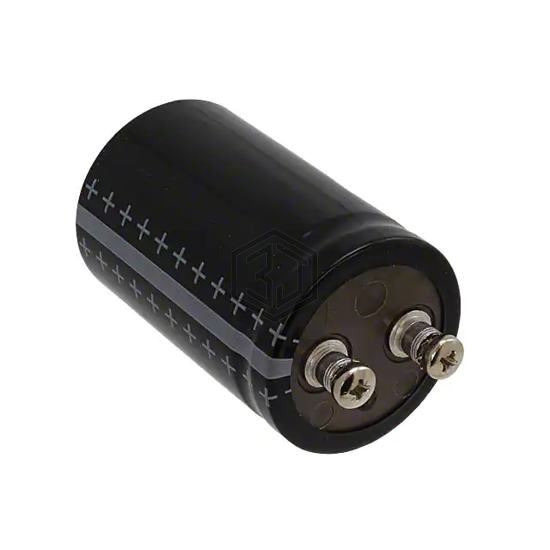

CAP ALUM 33000UF 100V SCREW
B41550A9339Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 33000UF 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,665
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 9mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 23 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 8 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550A9339Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 101C303U100CE2D | Cornell Dubilier Knowles | CAP ALUM 100V POLAR | 85% | View |
| B41550E8339Q000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 63V SCREW | 82% | View |
| 101X313U075CC2B | Cornell Dubilier Knowles | CAP ALUM 75V POLAR | 82% | View |
| B41554E8339Q000 | EPCOS - TDK Electronics | CAP ALUM 33000UF 63V SCREW | 73% | View |
| 101C323U050CH2B | Cornell Dubilier Knowles | CAP ALUM 50V POLAR | 68% | View |
| 101C293U050AF2B | Cornell Dubilier Knowles | CAP ALUM 50V POLAR | 63% | View |
Submit your RFQ for B41550A9339Q000 and get a quote within 24 hours.
