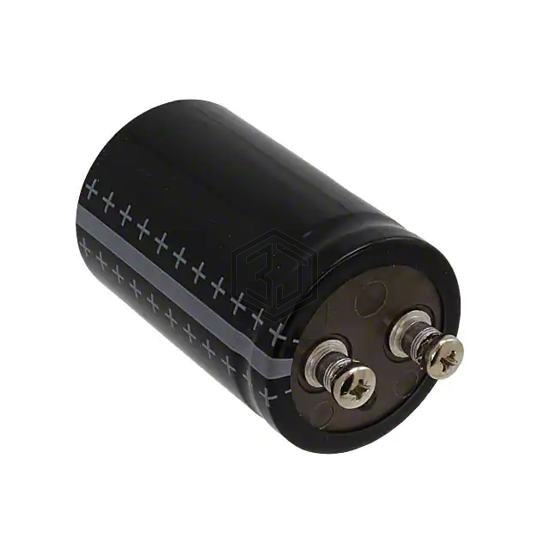

CAP ALUM 1500UF 100V SCREW
B41550A9158Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1500UF 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,570
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 1500 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 83mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.8 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 34 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550A9158Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLS162M075EA1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 1600UF 20% 75V FLATPACK | 76% | View |
| MLS162M075EA1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1600UF 20% 75V FLATPACK | 76% | View |
| MLS162M075EA0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1600UF 20% 75V FLATPACK | 76% | View |
| MLS162M075EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 1600UF 20% 75V FLATPACK | 76% | View |
| HVMLS162M075EA0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 1600UF 20% 75V FLATPACK | 76% | View |
| HVMLS162M075EA0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 1600UF 20% 75V FLATPACK | 76% | View |
Submit your RFQ for B41550A9158Q000 and get a quote within 24 hours.
