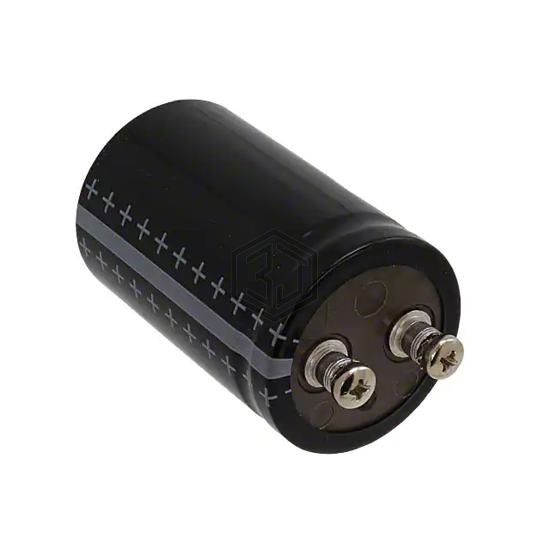

CAP ALUM 100000UF 40V SCREW
B41550A7100Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 100000UF 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,725
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 100000 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 7mOhm @ 100Hz |
| Lifetime @ Temp. | 20000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 26 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 6 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 5.677" (144.20mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550A7100Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41554B7100Q000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 40V SCREW | 92% | View |
| 101C793U040BF2B | Cornell Dubilier Knowles | CAP ALUM 40V POLAR | 77% | View |
| B41550E7689Q000 | EPCOS - TDK Electronics | CAP ALUM 68000UF 40V SCREW | 75% | View |
| B41550E5100Q000 | EPCOS - TDK Electronics | CAP ALUM 100000UF 25V SCREW | 74% | View |
| 101C134U040DC2D | Cornell Dubilier Knowles | CAP ALUM 40V POLAR | 71% | View |
| B41550A5150Q000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 25V SCREW | 67% | View |
Submit your RFQ for B41550A7100Q000 and get a quote within 24 hours.
