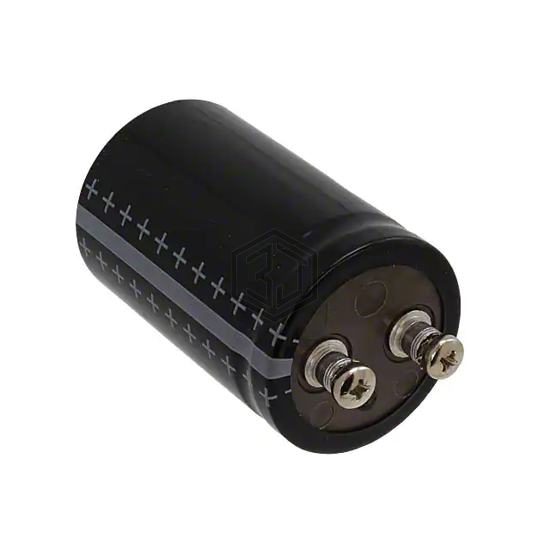

CAP ALUM 6800UF 25V SCREW
B41550A5688Q000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 6800UF 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,205
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | -10%, +30% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 32mOhm @ 100Hz |
| Lifetime @ Temp. | 10000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.4 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 27 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41550A5688Q000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLS682M020EK1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 73% | View |
| MLS682M020EK1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 73% | View |
| MLS682M020EK0A | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 73% | View |
| HVMLS682M020EK1D | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 73% | View |
| HVMLS682M020EK1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 73% | View |
| HVMLS682M020EK0D | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 73% | View |
Submit your RFQ for B41550A5688Q000 and get a quote within 24 hours.
