CAP ALUM 2200UF 20% 63V SNAP

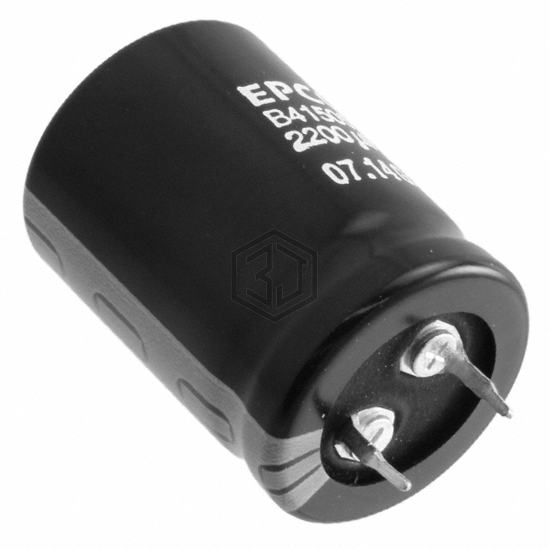

B41505A8228M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 2200UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 9,556
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 68mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 72 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.984" Dia (25.00mm) |
| Height - Seated (Max) | 1.457" (37.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL204858222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 63V RADIAL | 91% | View |
| 381LX222M080K022 | Cornell Dubilier Electronics (CDE) | CAP ALUM 2200UF 20% 80V SNAP | 83% | View |
| MAL213847222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 40V SNAP | 78% | View |
| EKZN630ELL222MM40S | United Chemi-Con | CAP ALUM 2200UF 20% 63V RADIAL | 68% | View |
| EG1H222MNN18P1EF8 | Chinsan (Elite) | ALUMINUM ELECTROLYTIC CAPACITORS | 64% | View |
| EKZH160ELL222MK20S | United Chemi-Con | CAP ALUM 2200UF 20% 16V RADIAL | 56% | View |
Submit your RFQ for B41505A8228M000 and get a quote within 24 hours.
