CAP ALUM 1000UF 20% 63V SNAP

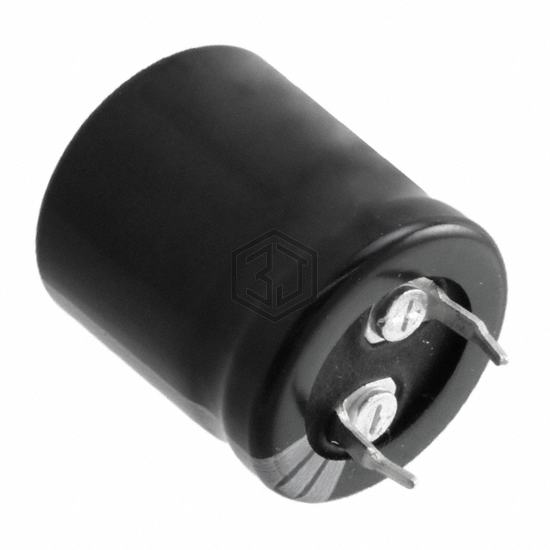

B41505A8108M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 1000UF 20% 63V SNAP. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - rated 63 V, package / case Radial, Can - Snap-In.
In Stock: 194
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 149mOhm @ 100Hz |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 159 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL214658102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 63V RADIAL | 75% | View |
| 108KXM010M | Cornell Dubilier / Illinois Capacitor | CAP ALUM 1000UF 20% 10V RADIAL | 66% | View |
| MAL214030102E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 1000UF 20% 35V RADIAL | 62% | View |
| 511D108M035EN4D | Vishay Sprague | CAP ALUM 1000UF 20% 35V RADIAL | 62% | View |
| 25YXF1000MG412.5X20 | Rubycon | CAP ALUM 1000UF 20% 25V RADIAL | 61% | View |
| 672D108H012DS5J | Vishay Sprague | CAP ALUM 1000UF 12V RADIAL | 56% | View |
