CAP ALUM 6800UF 20% 100V SCREW

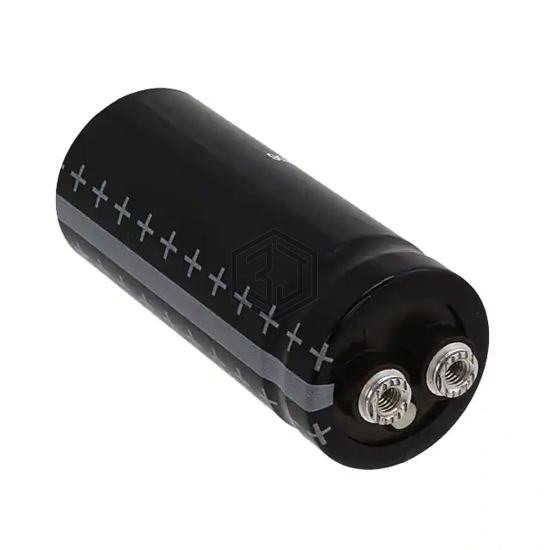

B41458B9688M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 6800UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 7,550
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 29mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 25 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B9688M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D451LGC682MFD0U | United Chemi-Con | CAP ALUM 6800UF 20% 450V SCREW | 66% | View |
| B43454A4688M | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 350V SCREW | 61% | View |
| MAL250116682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 400V SCREW | 58% | View |
| MAL210252682E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 6800UF 20% 200V SCREW | 56% | View |
| E36D500LPN682TA54U | United Chemi-Con | CAP ALUM 6800UF 50V SCREW | 56% | View |
| B43721A4688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 350V SCREW | 55% | View |
