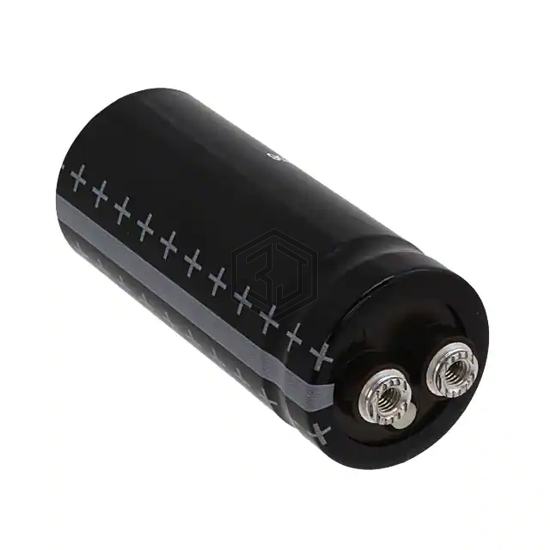

CAP ALUM 4700UF 20% 100V SCREW
B41458B9478M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 4700UF 20% 100V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 100 V, package / case Radial, Can - Screw Terminals.
In Stock: 8,503
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 4700 µF |
| Tolerance | ±20% |
| Voltage - Rated | 100 V |
| ESR (Equivalent Series Resistance) | 40mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 35 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B9478M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 100LSQ4700MEFC36X83 | Rubycon | CAP ALUM 4700UF 20% 100V SCREW | 79% | View |
| E36D251HLS472MD79U | United Chemi-Con | CAP ALUM 4700UF 20% 250V SCREW | 67% | View |
| E36D251HLN472MCA5U | United Chemi-Con | CAP ALUM 4700UF 20% 250V SCREW | 67% | View |
| E32D451HPN472MED0U | United Chemi-Con | CAP ALUM 4700UF 20% 450V SCREW | 56% | View |
| 36DY472F200CC2A | Vishay Sprague | CAP ALUM 4700UF 200V SCREW | 56% | View |
| E36D451HPN472TEE3U | United Chemi-Con | CAP ALUM 4700UF 450V SCREW | 56% | View |
Submit your RFQ for B41458B9478M000 and get a quote within 24 hours.
