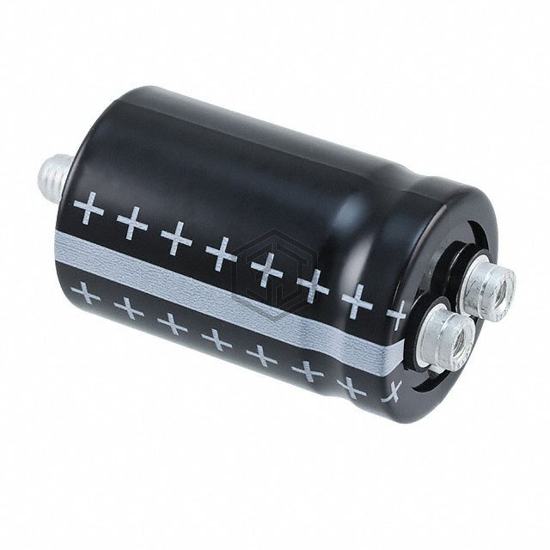

CAP ALUM 6800UF 20% 63V SCREW
B41458B8688M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 6800UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,444
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 6800 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 43mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 5.9 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 42 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B8688M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41456B8688M000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 20% 63V SCREW | 100% | View |
| B41554E8688Q000 | EPCOS - TDK Electronics | CAP ALUM 6800UF 63V SCREW | 80% | View |
| 80LSQ6800MEFC36X83 | Rubycon | CAP ALUM 6800UF 20% 80V SCREW | 75% | View |
| E36D500HPN682MA41M | United Chemi-Con | CAP ALUM 6800UF 20% 50V SCREW | 70% | View |
| E32D101HPN682MAA5U | United Chemi-Con | CAP ALUM 6800UF 20% 100V SCREW | 61% | View |
| MLS682M020EK1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 6800UF 20% 20V FLATPACK | 51% | View |
Submit your RFQ for B41458B8688M000 and get a quote within 24 hours.
