CAP ALUM 15000UF 20% 63V SCREW

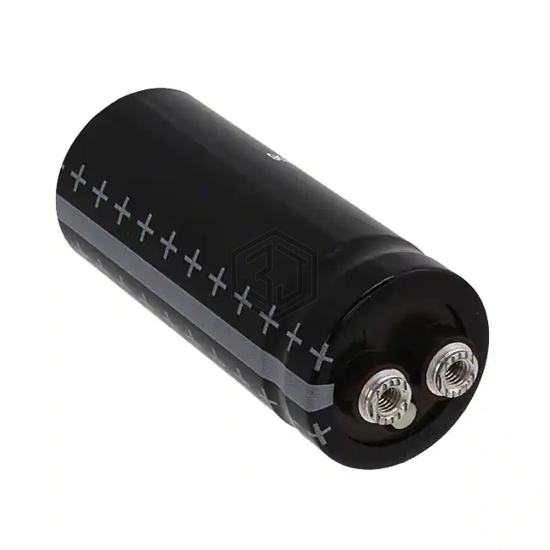

B41458B8159M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 15000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,947
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 15000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 22mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 10 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 21 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B8159M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS30A153KE063 | KEMET | CAP ALUM 15000UF 20% 63V SCREW | 81% | View |
| 3186BE153T045APA3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 15000UF 45V SCREW | 78% | View |
| MAL210117153E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 15000UF 20% 40V SCREW | 77% | View |
| 100LSW15000MNB51X118 | Rubycon | CAP ALUM 15000UF 20% 100V SCREW | 76% | View |
| B41580A9159M000 | EPCOS - TDK Electronics | CAP ALUM 15000UF 20% 100V SCREW | 62% | View |
| E36D251HPC153MED0U | United Chemi-Con | CAP ALUM 15000UF 20% 250V SCREW | 51% | View |
