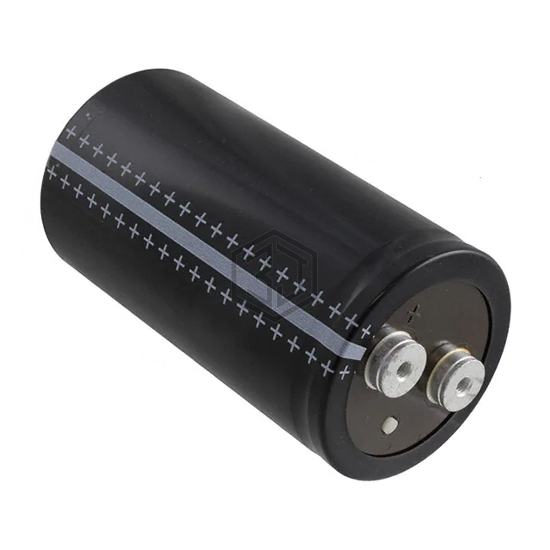

CAP ALUM 150000UF 20% 63V SCREW
B41458B8150M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 150000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 4,861
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 4mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 31 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 8.728" (221.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D500LPN154TEE3U | United Chemi-Con | CAP ALUM 150000UF 50V SCREW | 85% | View |
| DCMX144U075DG2B | Cornell Dubilier Electronics (CDE) | CAP ALUM 140000UF 75V SCREW | 83% | View |
| DCMC144U075FE2D | Cornell Dubilier Electronics (CDE) | CAP ALUM 140000UF 75V SCREW | 81% | View |
| CGS144U075X8L | Cornell Dubilier Electronics (CDE) | CAP ALUM 140000UF 75V SCREW | 77% | View |
| E36D500HPN154MDB7U | United Chemi-Con | CAP ALUM 150000UF 20% 50V SCREW | 72% | View |
| MAL210647154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 40V SCREW | 64% | View |
