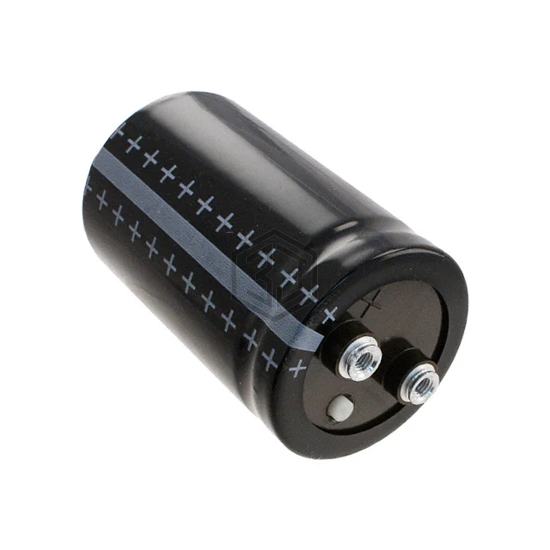

CAP ALUM 68000UF 20% 25V SCREW
B41458B5689M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 68000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 5,442
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 12mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 13 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 9.3 mOhms |
| Lead Spacing | 0.874" (22.20mm) |
| Size / Dimension | 2.032" Dia (51.60mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1E683MSE | Nichicon | CAP ALUM 68000UF 20% 25V SCREW | 92% | View |
| MAL210616683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 25V SCREW | 84% | View |
| LNT1J683MSE | Nichicon | CAP ALUM 68000UF 20% 63V SCREW | 70% | View |
| LNR1C683MSE | Nichicon | CAP ALUM 68000UF 20% 16V SCREW | 65% | View |
| B41560A8689M000 | EPCOS - TDK Electronics | CAP ALUM 68000UF 20% 63V SCREW | 63% | View |
| B41560A8689M003 | EPCOS - TDK Electronics | CAP ALUM 68000UF 20% 63V SCREW | 63% | View |
Submit your RFQ for B41458B5689M000 and get a quote within 24 hours.
