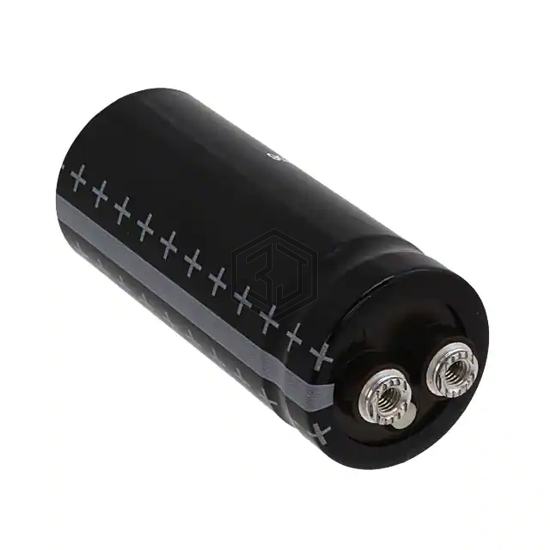

CAP ALUM 47000UF 20% 25V SCREW
B41458B5479M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 47000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,355
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 15mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 12 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 12 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B5479M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41560A5479M000 | EPCOS - TDK Electronics | CAP ALUM 47000UF 20% 25V SCREW | 96% | View |
| LNR1E473MSE | Nichicon | CAP ALUM 47000UF 20% 25V SCREW | 88% | View |
| E32D350HLN473MC67U | United Chemi-Con | CAP ALUM 47000UF 20% 35V SCREW | 78% | View |
| CG483U025X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 48000UF 25V SCREW | 75% | View |
| CGS483U050X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 48000UF 50V SCREW | 61% | View |
| 36DE473G050BF2A | Vishay Sprague | CAP ALUM 47000UF 50V SCREW | 56% | View |
Submit your RFQ for B41458B5479M000 and get a quote within 24 hours.
