CAP ALUM 22000UF 20% 25V SCREW

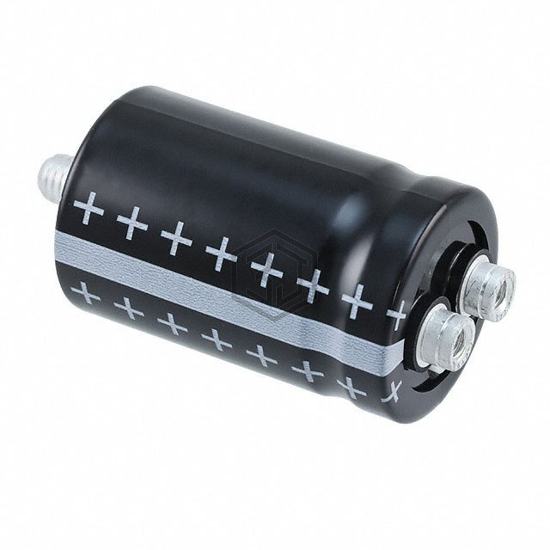

B41458B5229M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 22000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,028
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 22000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 25mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 7.7 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 20 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B5229M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LNT1E223MSEN | Nichicon | CAP ALUM 22000UF 20% 25V SCREW | 85% | View |
| PEH200HC5220MB2 | KEMET | CAP ALUM 22000UF 20% 25V SCREW | 78% | View |
| E32D400HLS223MA79U | United Chemi-Con | CAP ALUM 22000UF 20% 40V SCREW | 70% | View |
| LNT1K223MSEB | Nichicon | CAP ALUM 22000UF 20% 80V SCREW | 69% | View |
| E36D630HPN223MAA5U | United Chemi-Con | CAP ALUM 22000UF 20% 63V SCREW | 69% | View |
| LNT1J223MSEB | Nichicon | CAP ALUM 22000UF 20% 63V SCREW | 68% | View |
