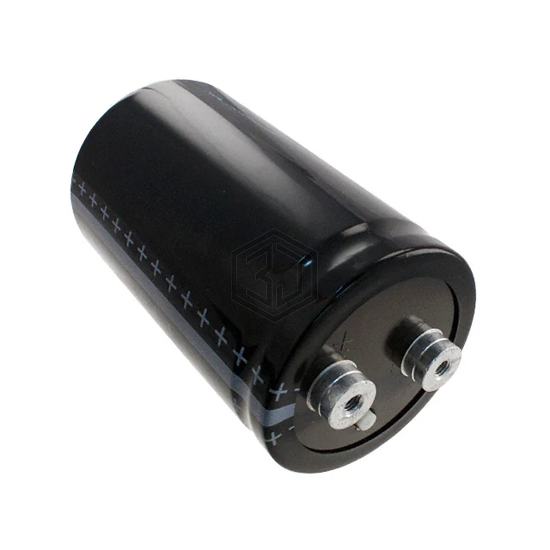

CAP ALUM 150000UF 20% 25V SCREW
B41458B5150M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 150000UF 20% 25V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,951
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 8mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 6.4 mOhms |
| Lead Spacing | 1.122" (28.50mm) |
| Size / Dimension | 2.532" Dia (64.30mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| B41456B5150M000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 25V SCREW | 100% | View |
| MAL210137154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 82% | View |
| B41456B7150M000 | EPCOS - TDK Electronics | CAP ALUM 150000UF 20% 40V SCREW | 82% | View |
| MAL210157154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 82% | View |
| LNR1V154MSEB | Nichicon | CAP ALUM 150000UF 20% 35V SCREW | 76% | View |
| MAL210187154E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 150000UF 20% 40V SCREW | 75% | View |
Submit your RFQ for B41458B5150M000 and get a quote within 24 hours.
