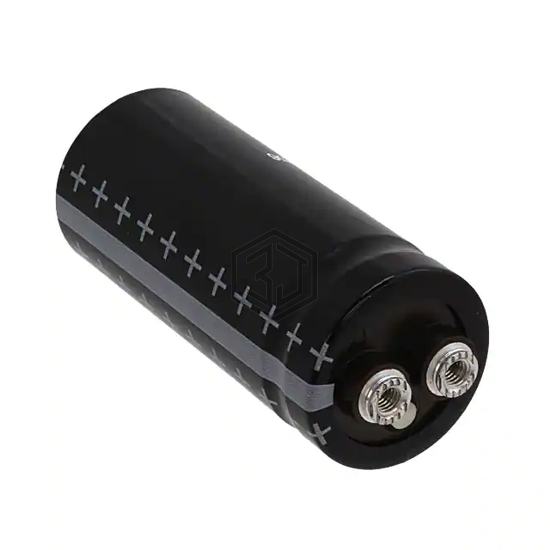

CAP ALUM 47000UF 20% 16V SCREW
B41458B4479M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 47000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 1,083
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 47000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 16mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 11 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 13 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 3.217" (81.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B4479M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMH250LGB473MAC0U | Chemi-Con | CAP ALUM 34MF 15V SCREW CHAS MT | 76% | View |
| MAL205014473E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 47000UF 10V SOLDER LUG | 67% | View |
| MLP473M7R5EB1A | Cornell Dubilier Electronics (CDE) | CAP ALUM 47000UF 20% 7.5V FLTPCK | 65% | View |
| E36D800HLN473ME92M | United Chemi-Con | CAP ALUM 47000UF 20% 80V SCREW | 62% | View |
| E36D350HPN473MAA5U | United Chemi-Con | CAP ALUM 47000UF 20% 35V SCREW | 60% | View |
| E36D101LLN473MEB7U | United Chemi-Con | CAP ALUM 47000UF 20% 100V SCREW | 56% | View |
