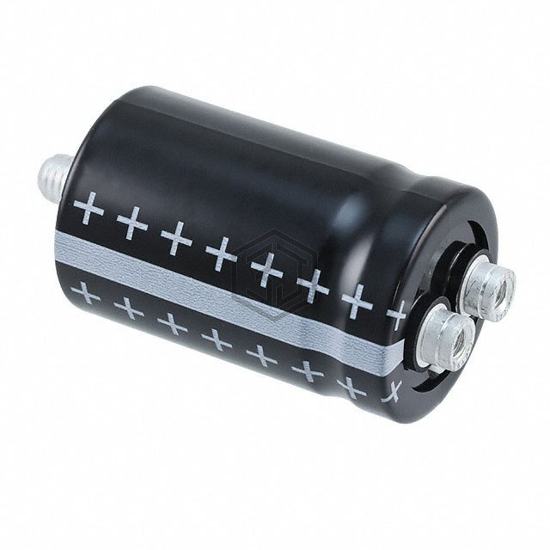

CAP ALUM 33000UF 20% 16V SCREW
B41458B4339M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 33000UF 20% 16V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 16 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,587
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 33000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 21mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 8.3 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 17 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.232" (56.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41458B4339M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| E36D500HPN333MC67U | United Chemi-Con | CAP ALUM 33000UF 20% 50V SCREW | 71% | View |
| LNR1J333MSE | Nichicon | CAP ALUM 33000UF 20% 63V SCREW | 70% | View |
| 80LSW33000M64X119 | Rubycon | CAP ALUM 33000UF 20% 80V SCREW | 61% | View |
| LNT2A333MSEN | Nichicon | CAP ALUM 33000UF 20% 100V SCREW | 58% | View |
| E36D101HLN333MEA5U | United Chemi-Con | CAP ALUM 33000UF 20% 100V SCREW | 56% | View |
| E36D101HPN333UEM9U | United Chemi-Con | CAP ALUM 33000UF 100V SCREW | 56% | View |
