CAP ALUM 68000UF 20% 63V SCREW

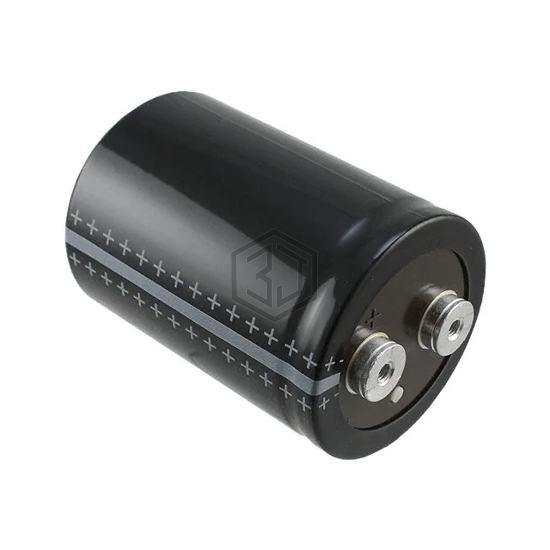

B41456B8689M003 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 68000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 9,068
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 68000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 5mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 20 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 6.5 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 4.201" (106.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL210158683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 63V SCREW | 99% | View |
| MAL210188683E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 68000UF 20% 63V SCREW | 93% | View |
| ALS80A683QC063 | KEMET | CAP ALUM 68000UF 20% 63V SCREW | 87% | View |
| LNT2A683MSEB | Nichicon | CAP ALUM 68000UF 20% 100V SCREW | 78% | View |
| CGS683U040X4C | Cornell Dubilier Electronics (CDE) | CAP ALUM 68000UF 40V SCREW | 74% | View |
| ALS81P683NW100 | KEMET | CAP ALUM 68000UF 20% 100V SCREW | 72% | View |
