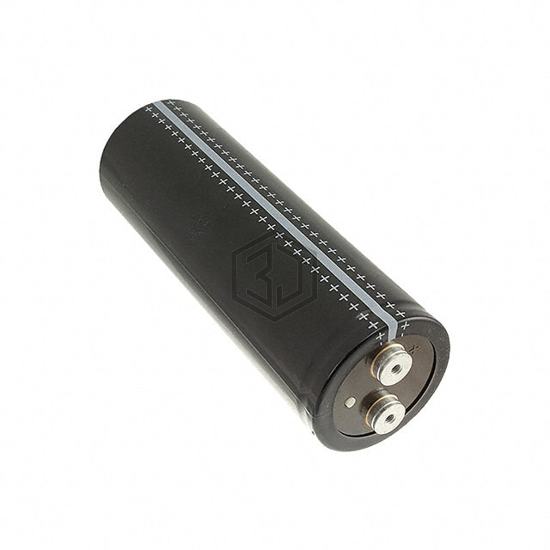

CAP ALUM 150000UF 20% 63V SCREW
B41456B8150M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 150000UF 20% 63V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 63 V, package / case Radial, Can - Screw Terminals.
In Stock: 2,224
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 150000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 4mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 31 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 5 mOhms |
| Lead Spacing | 1.248" (31.70mm) |
| Size / Dimension | 3.028" Dia (76.90mm) |
| Height - Seated (Max) | 8.728" (221.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ALS71A164NP063 | KEMET | CAP ALUM 160000UF 20% 63V SCREW | 87% | View |
| E32D500HPN154MDE3U | United Chemi-Con | CAP ALUM 150000UF 20% 50V SCREW | 84% | View |
| LNT1K154MSEB | Nichicon | CAP ALUM 150000UF 20% 80V SCREW | 78% | View |
| CGS154U040X5L | Cornell Dubilier Electronics (CDE) | CAP ALUM 150000UF 40V SCREW | 76% | View |
| LNR2A154MSEB | Nichicon | CAP ALUM 150000UF 20% 100V SCREW | 76% | View |
| LNT1H154MSEB | Nichicon | CAP ALUM 150000UF 20% 50V SCREW | 75% | View |
Submit your RFQ for B41456B8150M000 and get a quote within 24 hours.
