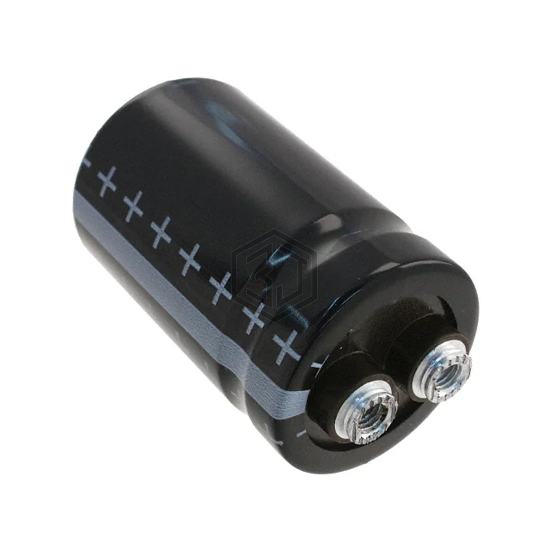

CAP ALUM 10000UF 20% 40V SCREW
B41456B7109M000 is a Aluminum Electrolytic Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM 10000UF 20% 40V SCREW. Key specifications: mounting type Chassis Mount, operating temperature -40°C ~ 85°C, voltage - rated 40 V, package / case Radial, Can - Screw Terminals.
In Stock: 6,415
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 10000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 40 V |
| ESR (Equivalent Series Resistance) | 37mOhm @ 100Hz |
| Lifetime @ Temp. | 12000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 6.3 A @ 100 Hz |
| Ripple Current @ High Frequency | - |
| Impedance | 34 mOhms |
| Lead Spacing | 0.500" (12.70mm) |
| Size / Dimension | 1.406" Dia (35.70mm) |
| Height - Seated (Max) | 2.193" (55.70mm) |
| Surface Mount Land Size | - |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
B41456B7109M000 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| CGS103U025R3C | Cornell Dubilier Electronics (CDE) | CAP ALUM 10000UF 25V SCREW | 80% | View |
| MAL210656103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 25V SCREW | 77% | View |
| MAL210657103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 40V SCREW | 74% | View |
| MAL210617103E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 10000UF 40V SCREW | 74% | View |
| 36DE103G075BB2A | Vishay Sprague | CAP ALUM 10000UF 75V SCREW | 60% | View |
| E36D750LPN103QCE3U | United Chemi-Con | CAP ALUM 10000UF 75V SCREW | 60% | View |
Submit your RFQ for B41456B7109M000 and get a quote within 24 hours.
