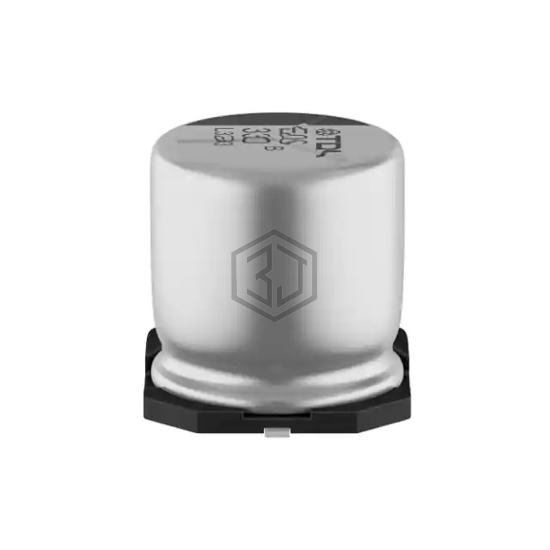

CAP ALUM POL HY 100UF 20% 63V SM
B40940B8107M000 is a Aluminum - Polymer Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM POL HY 100UF 20% 63V SM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 3,033
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 22mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -40°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.504" (12.80mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEH-ZS1J101P | Panasonic Electronic Components | CAP POLYMER HYBRID 100UF 63V SMD | 96% | View |
| EEH-ZU1J101V | Panasonic Electronic Components | CAP ALUM POLY HYB 100UF 63V SMD | 90% | View |
| EEH-ZT1H101V | Panasonic Electronic Components | CAP ALUM POLY HYB 100UF 50V SMD | 85% | View |
| HHXC500ARA101MJA0G | United Chemi-Con | CAP ALUM POLY 100UF 20% 50V SMD | 66% | View |
| EEH-ZK1V101XV | Panasonic Electronic Components | CAP ALUM POLY 100UF 20% 35V SMD | 53% | View |
| HHXC350ARA101MHA0G | United Chemi-Con | CAP ALUM POLY 100UF 20% 35V SMD | 51% | View |
