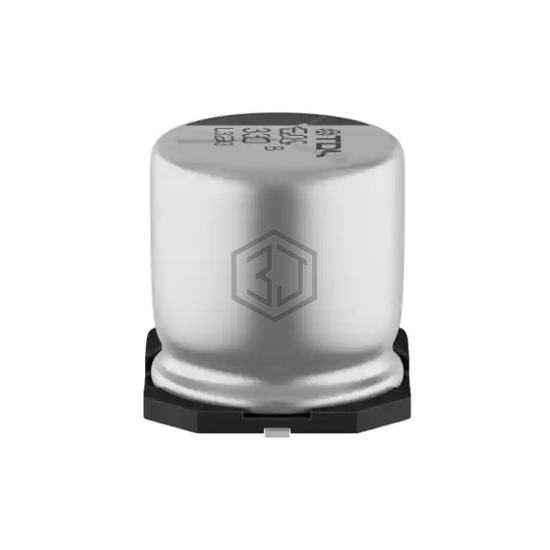

CAP ALUM POL HY 82UF 20% 63V SMD
B40940A8826M000 is a Aluminum - Polymer Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM POL HY 82UF 20% 63V SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 145°C, voltage - rated 63 V, package / case Radial, Can - SMD.
In Stock: 8,837
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 82 µF |
| Tolerance | ±20% |
| Voltage - Rated | 63 V |
| ESR (Equivalent Series Resistance) | 30mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 145°C |
| Operating Temperature | -40°C ~ 145°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.8 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.413" (10.50mm) |
| Surface Mount Land Size | 0.406" L x 0.406" W (10.30mm x 10.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| A785MN826M1JLAS030 | KEMET | CAP ALUM HYBRID 82UF 20% 63V SMD | 92% | View |
| A785MN826M1JLAV030 | KEMET | CAP ALUM HYBRID 82UF 20% 63V SMD | 92% | View |
| B40940A8127M000 | EPCOS - TDK Electronics | CAP ALUM POL HY 120UF 20% 63V SM | 74% | View |
| EEH-ZE1J820V | Panasonic Electronic Components | CAP ALUM POLY 82UF 20% 63V SMD | 64% | View |
| EEH-ZE1J820P | Panasonic Electronic Components | CAP ALUM HYBRID 82UF 20% 63V SMD | 64% | View |
| 50PLV100M10X10.5 | Rubycon | CAP ALUM POLY HYB 100UF 50V SMD | 55% | View |
