CAP ALUM POLY HYB 1200UF 25V T/H

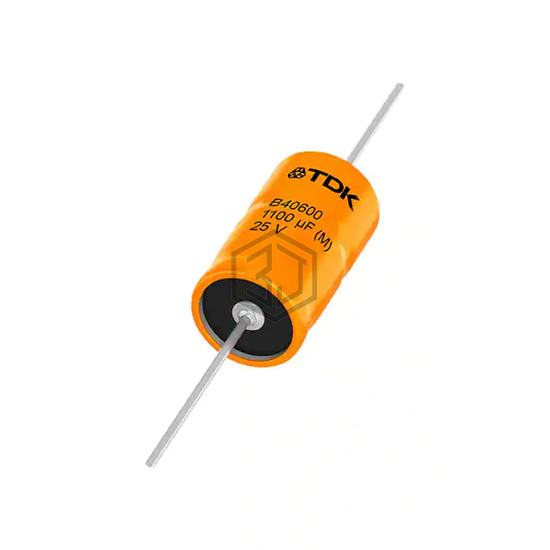

B40600A5128M001 is a Aluminum - Polymer Capacitors manufactured by EPCOS - TDK Electronics. CAP ALUM POLY HYB 1200UF 25V T/H. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, voltage - rated 25 V, package / case Axial, Can.
In Stock: 131
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Hybrid |
| Capacitance | 1200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 5.1mOhm |
| Lifetime @ Temp. | 4000 Hrs @ 125°C |
| Operating Temperature | -55°C ~ 125°C |
| Ratings | AEC-Q200 |
| Applications | Automotive |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 7.4 A @ 20 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.551" Dia x 0.984" L (14.00mm x 25.00mm) |
| Height - Seated (Max) | - |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Axial, Can |
Submit your RFQ for B40600A5128M001 and get a quote within 24 hours.
