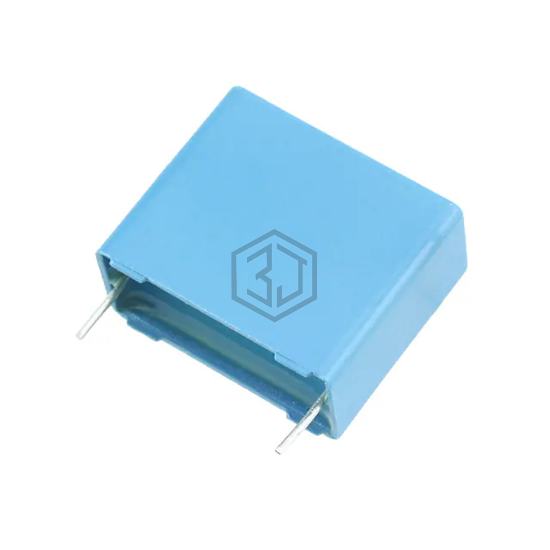

CAP FILM 0.68UF 20% 305VAC RAD
B32933A3684M000 is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 0.68UF 20% 305VAC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage rating - ac 305V, package / case Radial.
In Stock: 9,780
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 0.68 µF |
| Tolerance | ±20% |
| Voltage Rating - AC | 305V |
| Voltage Rating - DC | - |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | - |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.043" L x 0.413" W (26.50mm x 10.50mm) |
| Height - Seated (Max) | 0.650" (16.50mm) |
| Termination | PC Pins |
| Lead Spacing | 0.886" (22.50mm) |
| Applications | Automotive; EMI, RFI Suppression |
| Ratings | AEC-Q200, X2 |
| Features | 85C/85% Humidity |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| ECQ-UBAF684K | Panasonic Electronic Components | CAP FILM 0.68UF 10% 300VAC RADIA | 100% | View |
| ECQ-E6684KFW | Panasonic Electronic Components | CAP FILM 0.68UF 10% 630VDC RAD | 100% | View |
| F339X146833KKI2B0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 800VDC RAD | 99% | View |
| 20258-06 | Iskra | KNB1560 U68 10% 275V L8+1 R22.5 | 98% | View |
| BFC237357684 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 10% 400VDC RAD | 94% | View |
| BFC247954684 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 0.68UF 5% 400VDC RADIAL | 93% | View |
Submit your RFQ for B32933A3684M000 and get a quote within 24 hours.
