CAP FILM 25UF 10% 1.05KVDC RAD

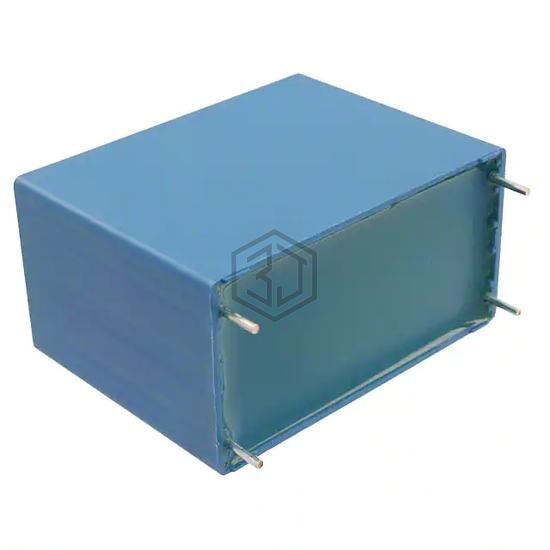

B32798G4256K is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 25UF 10% 1.05KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 1050V (1.05kV), package / case Radial.
In Stock: 3,508
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 25 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 1050V (1.05kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 3.5 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 2.264" L x 1.378" W (57.50mm x 35.00mm) |
| Height - Seated (Max) | 1.969" (50.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression |
| Ratings | - |
| Features | - |
B32798G4256K is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP1848H62590JY5 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 920VDC RADIAL | 98% | View |
| MHBS505250KJL | Nichicon | FILM CAP RADIAL | 96% | View |
| MKP1848625084P4 | Vishay Beyschlag/Draloric/BC Components | MKP 25UF 5% 800VDC RADIAL PITCH | 95% | View |
| MKP1847625254P2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 250VAC RADIAL | 92% | View |
| MKP1848H62550JP2 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 5% 500VDC RADIAL | 87% | View |
| F339MX262531MYI2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 25UF 20% 450VDC RADIAL | 85% | View |
Submit your RFQ for B32798G4256K and get a quote within 24 hours.
