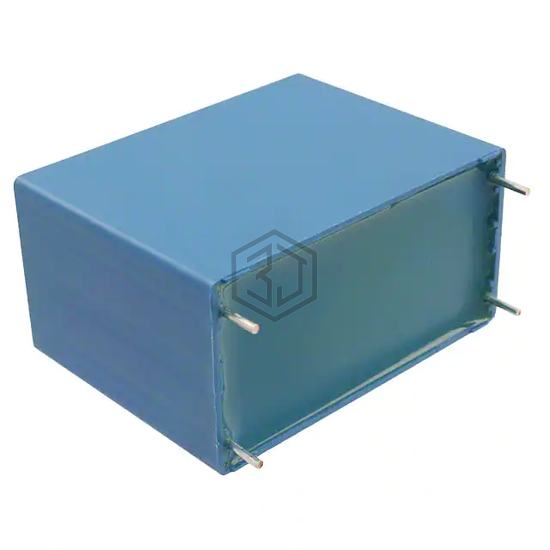

CAP FILM 18UF 10% 1.05KVDC RAD
B32798G4186K is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 18UF 10% 1.05KVDC RAD. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 1050V (1.05kV), package / case Radial.
In Stock: 8,335
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 18 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 1050V (1.05kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 4.7 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 2.264" L x 1.181" W (57.50mm x 30.00mm) |
| Height - Seated (Max) | 1.772" (45.00mm) |
| Termination | PC Pins |
| Lead Spacing | 2.067" (52.50mm) |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression |
| Ratings | - |
| Features | - |
B32798G4186K is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| C4AUNBW5180M3LJ | KEMET | FILM, RADIAL, METALLIZED POLYPRO | 99% | View |
| C4AQOLW5180M38J | KEMET | CAP FILM 18UF 5% 900VDC RADIAL | 97% | View |
| EFACA30J186E174DH | Eaton - Electronics Division | CAP FILM 18UF 5% 300VAC RAD | 95% | View |
| F340X261830KYP2T0 | Vishay Beyschlag/Draloric/BC Components | MKP F340X2 18F 10% 305VAC | 89% | View |
| PHB1405180KJL | Nichicon | FILM CAP BOXED RADIAL | 82% | View |
| MABA045180KJS | Nichicon | FILM CAP BOXED RADIAL | 73% | View |
