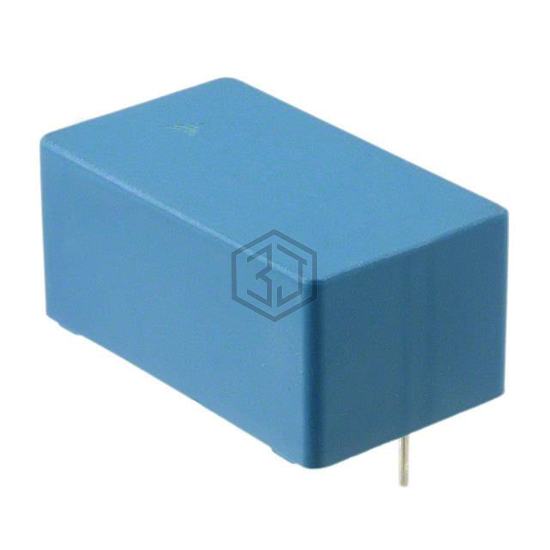

CAP FILM 2.7UF 10% 1KVDC RADIAL
B32796T4275K is a Film Capacitors manufactured by EPCOS - TDK Electronics. CAP FILM 2.7UF 10% 1KVDC RADIAL. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage rating - dc 1000V (1kV), package / case Radial.
In Stock: 4,366
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Capacitance | 2.7 µF |
| Tolerance | ±10% |
| Voltage Rating - AC | 400V |
| Voltage Rating - DC | 1000V (1kV) |
| Dielectric Material | Polypropylene (PP), Metallized |
| ESR (Equivalent Series Resistance) | 15 mOhms |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Size / Dimension | 1.634" L x 0.945" W (41.50mm x 24.00mm) |
| Height - Seated (Max) | 0.591" (15.00mm) |
| Termination | PC Pins |
| Lead Spacing | 1.476" (37.50mm) |
| Applications | DC Link, DC Filtering; EMI, RFI Suppression |
| Ratings | - |
| Features | - |
B32796T4275K is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MKP385527100JPP4T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 1KVDC RADIAL | 98% | View |
| MKP385527125JPP5T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 1.25KVDC RAD | 95% | View |
| B32926B4275K000 | EPCOS - TDK Electronics | CAP FILM 2.7UF 10% 650VDC RADIAL | 92% | View |
| ECW-FD2J275KQ | Panasonic Electronic Components | CAP FILM 2.7UF 10% 630VDC RADIAL | 92% | View |
| MABA024270KHS | Nichicon | CAP FILM 2.7UF 10% 600VDC RAD | 91% | View |
| MKP385E52763JPM2T0 | Vishay Beyschlag/Draloric/BC Components | CAP FILM 2.7UF 5% 630VDC RAD | 85% | View |
Submit your RFQ for B32796T4275K and get a quote within 24 hours.
